Optimize the performance of your installation. The PERC technology has meant a great development within the photovoltaic sector thanks to the increase in performance of the photovoltaic modules. This type of cells have a back layer that helps capture more solar radiation and a sheet that makes the excess sunlight rebound inside the cell and allows you to recover the surplus that the solar panels do not use. With this, we increase the capture efficiency of solar cells compared to photovoltaic solar panels with the same distribution, reducing the production price and the final cost of solar panels.
| ELECTRICAL DATA(STC) |
| Model Type | YH20W-18M |
| Peak Power(Pmax) | 20 |
| Maximum Power Voltage(Vmp) | 18.46 |
| Maximum Power Current(Imp) | 1.09 |
| Open Circuit Voltage(Voc) | 22.61 |
| Shot Circuit Current(Isc) | 1.19 |
| Module Efficiency(%) | 12.99 |
| Output Cables | Without cables and connector |

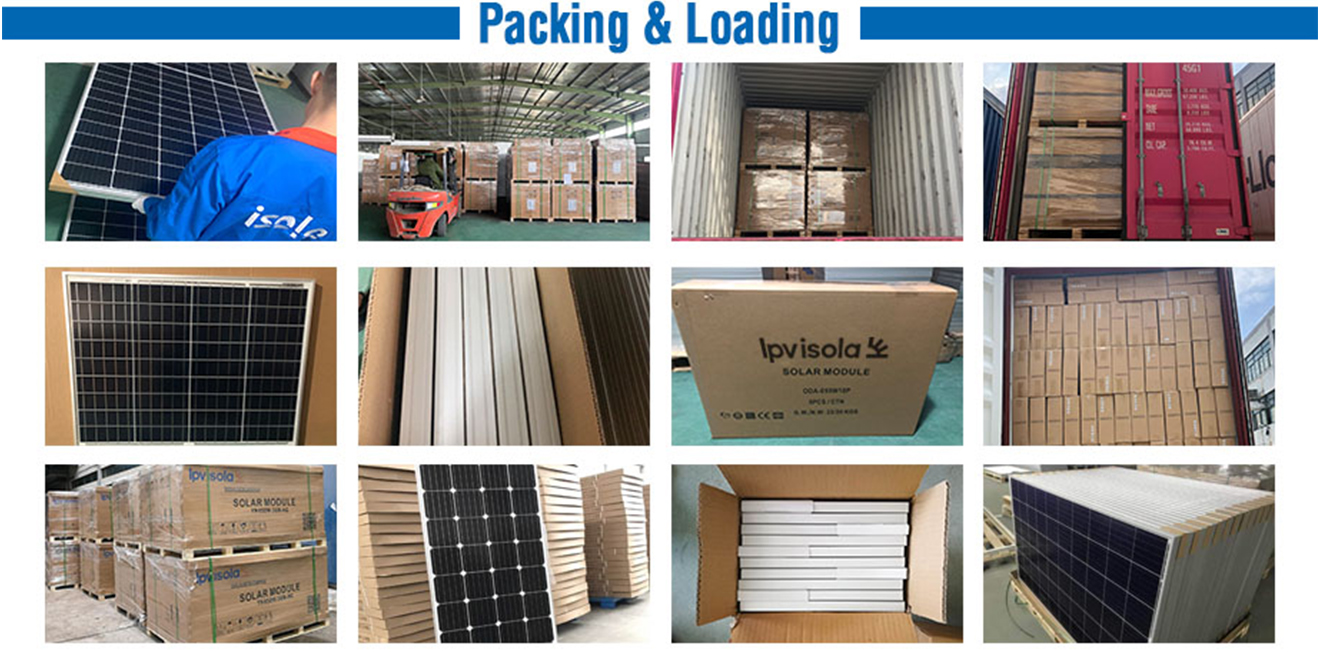

| Packing:5PCS/BOX |
| Cell Type | No.of Cell | Dimensions | Weight |
| 156.75*19.5 Mono | 36(2*18) | 440*350*25 | 1.62kg |
1) High transmissivity low-iron tempered glass, strong aluminium frame
2) Manufactured according to international quality and environment management system (ISO 9001, ISO 14001)
3) Low voltage-temperature coefficient allows higher power output at high-temperature condition
4) High efficiency, high reliable solar cells ensure our product output stability high efficiency crystalline silicone solar cells
5) 100% A grade solar cell with positive tolerance power range
6) Long lifespan, easy installation, high wind & hail impact resistance
7) Modules binned current to improve system performance
